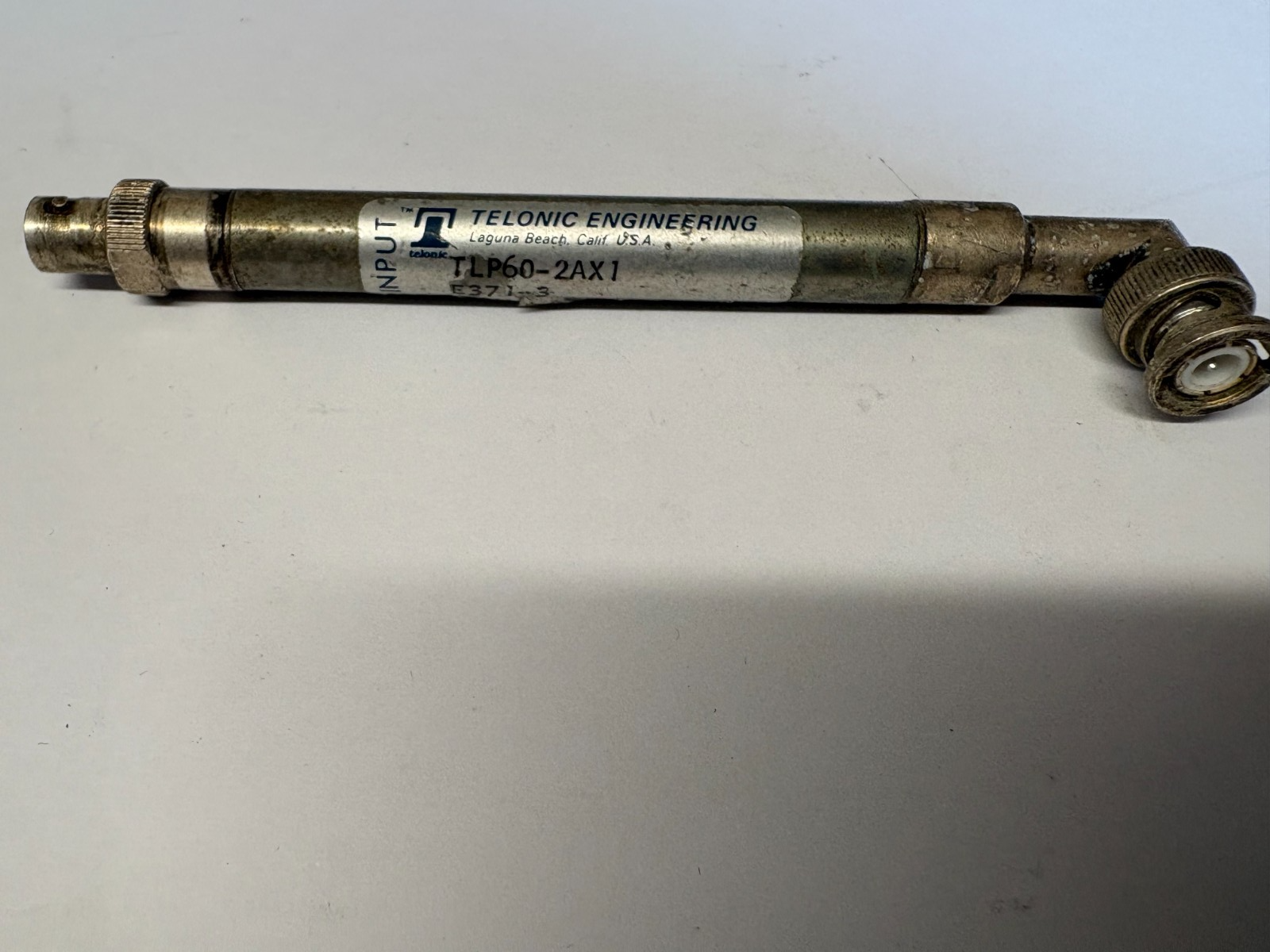

TELONIC TLP60-2AX1 TUNABLE BANDPASS FILTER
The TELONIC TLP60-2AX1 is a tunable bandpass filter with the following specifications:
- Bandwidth: 5% bandwidth, 5 sections, iris coupled, 0.05dB ripple Tchebychev filters.
- Construction: Slotted box construction and air gap tuning capacitors for low insertion loss and high rated power.
- Applications: Excellent for EMC testing, harmonic and spurious signal evaluation, and noise figure measurement.
- Tuning: Fully automated RF frequency testing over as much as six octaves frequency range with tuning times of 250 msec
