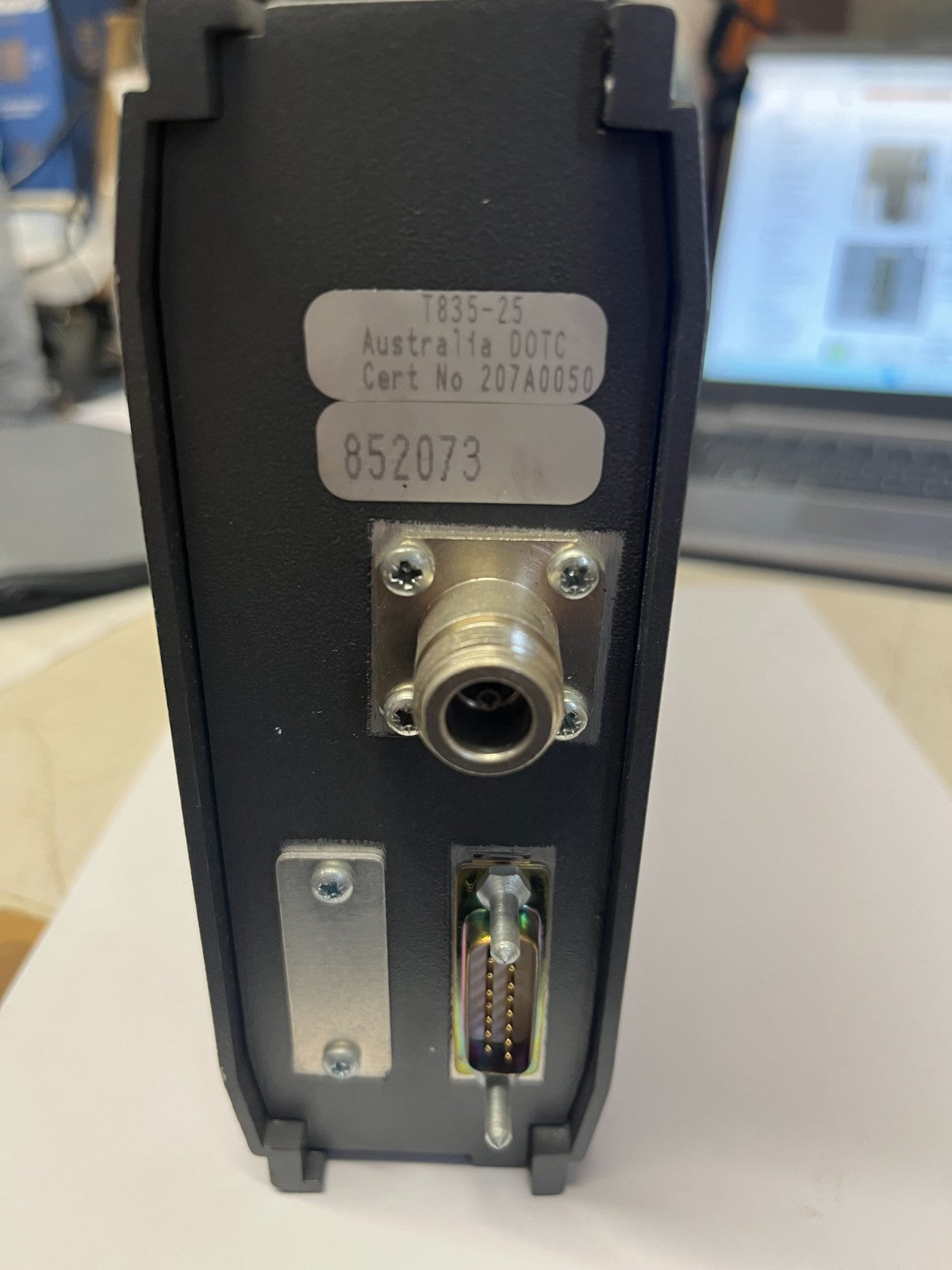

TAIT Electronics T835-25 Receiver Module for Base Station Repeater VHF
The TAIT T835-25 RECEIVER is a high-performance FM base station receiver designed for single or multichannel operation in the 136 to 174 MHz frequency range. Key specifications include:
- Dual Conversion Superhet: Offers high spurious signal rejection with a first IF of 21.4 MHz and a second IF of 455 kHz.
- Audio Output: Can deliver >+10dBm to a 600 ohm balanced output and 1W to a local monitor speaker.

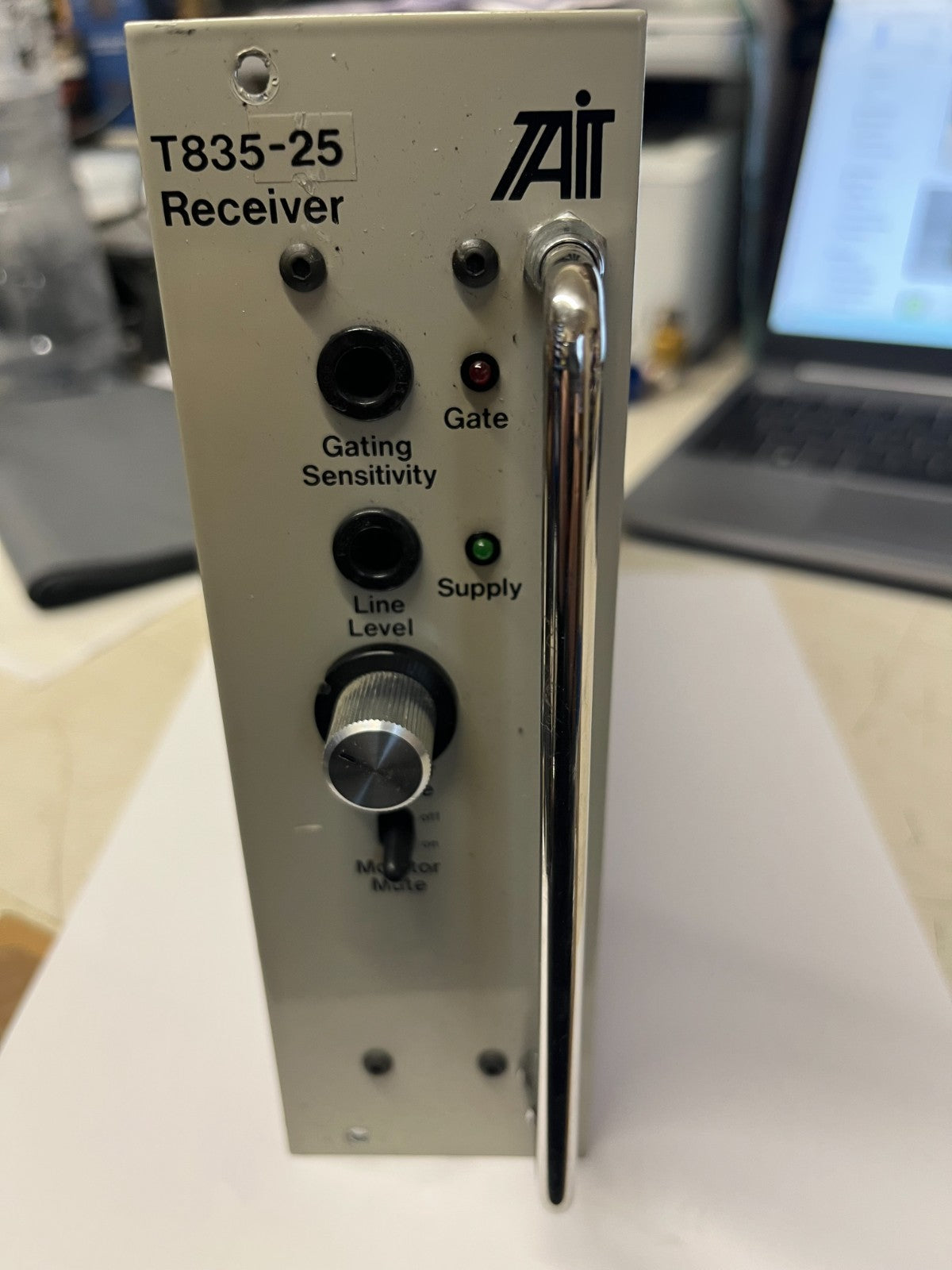

- Control Features: Includes gate sensitivity, line level, monitor volume, and a mute disable switch on the front panel.
- Rack Compatibility: Designed for use in a standard 483mm rack frame, accommodating up to seven standard modules.
