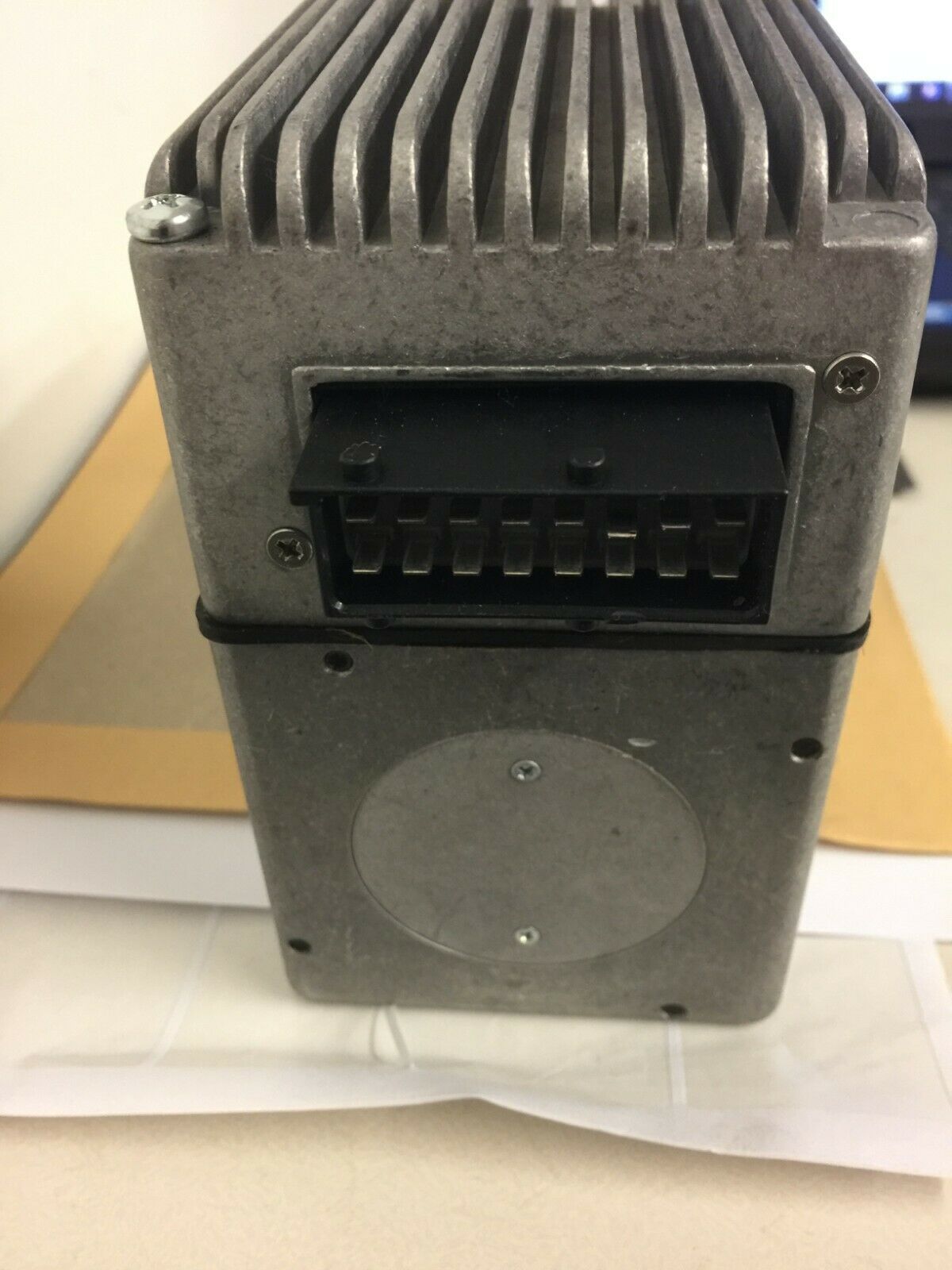

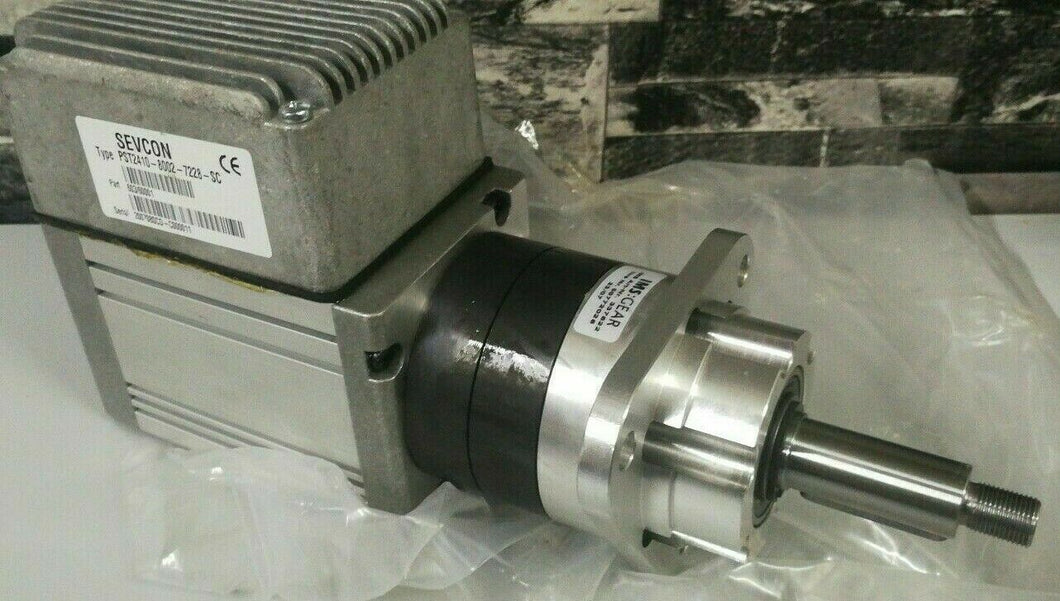

brand new Sevcon PST Power Steering motor with controller IMS GEAR PST2410 8002 7228 SC
The Sevcon Integrated Motor Control is a fly-by-wire electronic system for battery-powered equipment that features a controller, high efficiency brushless DC motor, and a two-stage planetary gearbox. Capable of being mounted in any orientation, this fully integrated brushless servo system covers operating voltages from 24 to 48 VDC, provides 35 to 235 Nm peak torque, depending upon model, and uses CANopen communications protocol.
Measuring 7.3" L x 3.2" W x 5.4" H, typically, the Sevcon Integrated Motor Control complies with worldwide electric vehicle standards for use as a power steering system. The gear ratio, coupling, and mounting designs can be customer specified and the gearbox uses straight and helical gears and is fully greased for quiet operation.
Part number
603/60001 specs ; battery voltage 24v , cont torque nm35, at n (rpm) 105 , peak torque nm 65 , at n (rpm) 70
Power boats tracks hgv golf buggy
The Sevcon Integrated Motor Control is a fly-by-wire electronic system for battery-powered equipment that features a controller, high efficiency brushless DC motor, and a two-stage planetary gearbox. Capable of being mounted in any orientation, this fully integrated brushless servo system covers operating voltages from 24 to 48 VDC, provides 35 to 235 Nm peak torque, depending upon model, and uses CANopen communications protocol.
Measuring 7.3" L x 3.2" W x 5.4" H, typically, the Sevcon Integrated Motor Control complies with worldwide electric vehicle standards for use as a power steering system. The gear ratio, coupling, and mounting designs can be customer specified and the gearbox uses straight and helical gears and is fully greased for quiet operation.
Part number
603/60001 specs ; battery voltage 24v , cont torque nm35, at n (rpm) 105 , peak torque nm 65 , at n (rpm) 70
Power boats tracks hgv golf buggy
Product Overview
Covering operating voltages from 24 to 48V, the system is easily optimized and can be operated in position, velocity or torque modes to handle the most demanding applications. The PST system complies with worldwide electric vehicle standards and includes many additional safety features to handle applications such as servo applications, ‘steer-by-wire’, etc.
Features
- CANopen
- Compact size
- Highest efficiency
- Position, speed, torque control
- High reliability gearbox
Advantages
- Optimized planetary gears for high speed / high torque
- Increased bearing spacing for enhanced radial force immunity
- Low noise via unique two-stage planetary gear design
- Grease impregnated for long life
- Neodymium magnets for excellent power-to-size ratio
- Integrated position sensors
- Combined motor and gearbox shaft eliminates unreliable coupling
- Integrated Motor-to-Drive connections for increased reliability
- DSP motor controller for fast, accurate step response
- Extensive integrated, configurable safety features comply with worldwide safetystandards
- I2t Drive & Motor protection eliminates overload failures
- Housing and connector sealed to IP54
