Morley M201E-240-DIN Mains Switching Output Module System Sensor
Features
• M201E–240 Mains Switching Output Module
• M201E–240–DIN DIN rail mount 240V mains
Switching Output Module
• Tri-colour LEDs
• Built-in short circuit isolators
• Decade address switches
• Approved to CEA GEI 1–082 and CEA GEI 1–084
Description
SERIES 200 plus
The M201E–240 and M201E–240–DIN form part of the
new family of input/output modules in System Sensor
Europe’s Series 200 plus range.
The M201E–240 is a loop-powered device controlling
an unsupervised double pole (one normally open, one
normally closed) output suitable for managing 240VAC
loads. The output relay is a bistable device, latching in
the on or off state on command from the control panel.
The module is supplied in a wall mounting box as
standard with a grounding terminal provided.

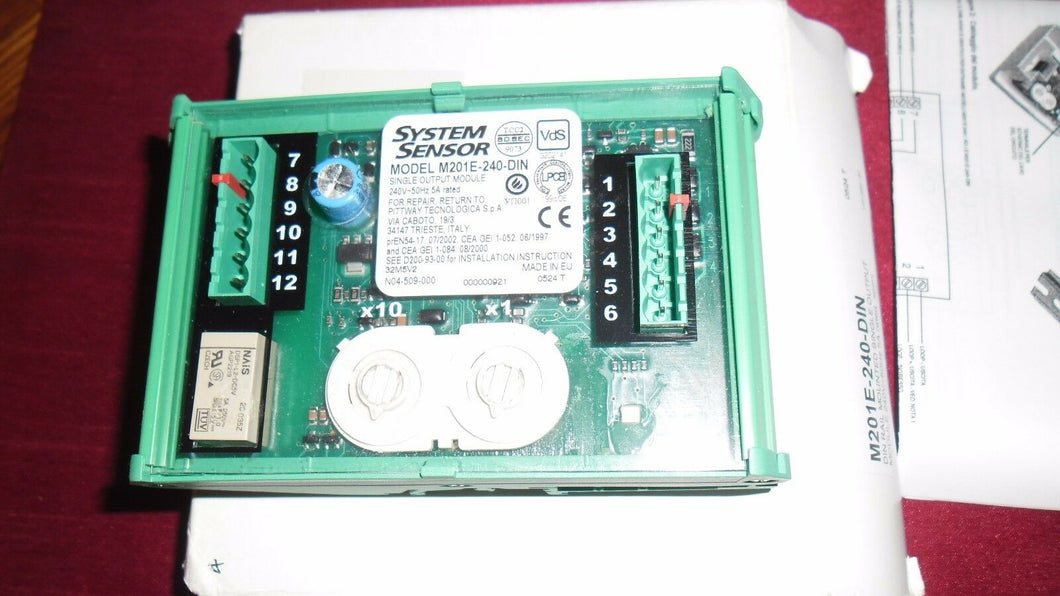

The M201E–240–DIN has the same features and
capabilities as the M201E–240 but is designed to mount
directly on to a standard 35mm ‘Top Hat’ DIN rail. The
module is supplied unboxed for installation in a suitable
enclosure.
Each module has built-in short circuit protection for the
communications loop; however, to increase application
flexibility, the isolators can be selected/deselected on an
individual module basis.
To help technicians in the maintenance and fault-finding
process, both the LEDs and the switches can be viewed
without having to remove the cover of the surface
mounting box. The LEDs, being multi-colour, provide
diagnostic information regarding the status of each
individual input/output.
For ease of installation, testing and maintenance, the
field wiring terminals are of plug-in design.
