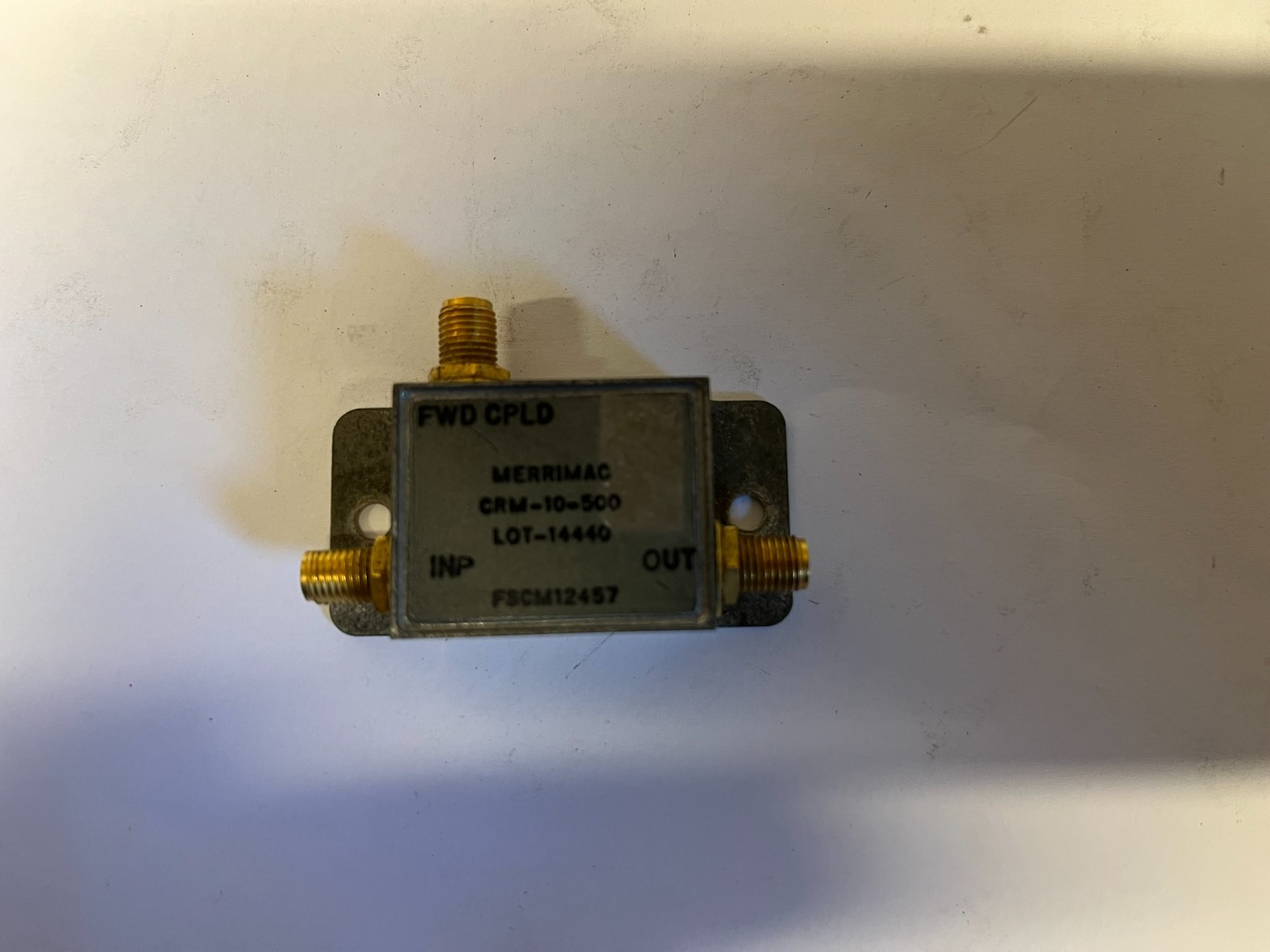

MERRIMAC CRM-10-500 Directional Coupler, 10MHz Min, 1000MHz MAX
| Status | Transferred |
| Additional Feature | HIGH RELIABILITY |
| Characteristic Impedance (ohm) | 50 |
| Input Power-Max (dBm) | 36.9900000000000000 |
| Insertion Loss-Max (dB) | 1.5000000000000000 |
| Operating Frequency-Max (MHz) | 1000.00000000 |
| Operating Frequency-Min (MHz) | 10.00000000 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -55 |
| RF/Microwave Device Type | DIRECTIONAL COUPLER |
| VSWR-Max | 1.5000000000000000 |
