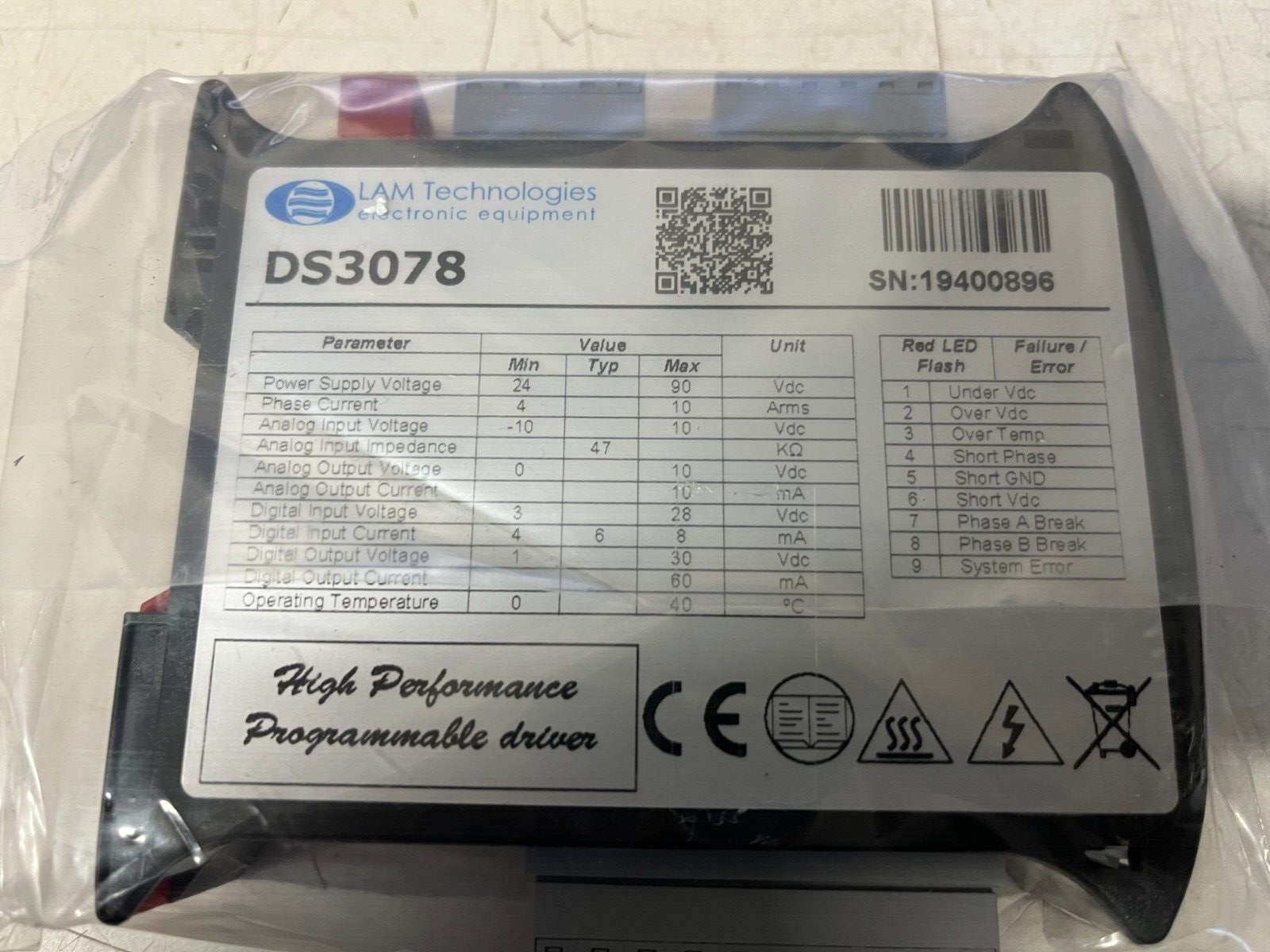

LAM TECHNOLOGIES DS3078 Programmable Stepper Motor Controller (AC supply) 65Vac 10Arms (14.1Apk)
| Power Supply Voltage | From 20Vac up to 65Vac |
| Phase Current | From 4Arms up to 10Arms in increments of 0.1Arms |
| Control Mode | Fully user programmable via free tool UDP Commander |
| Performance | Up to 3000rpm with 1/128 of step resolution |
| Function blocks | Assignment Jump and subroutine call, conditional and unconditional Wait for Event Math 32bit Logical operations (OR, AND, XOR, and SHIFT) Waiting |
| User Variables | Freely declarable with 1byte, 2byte, 3byte and 4byte size. |
| Special Features | High-speed counter also usable for Encoder Quote captures on the transition of one or more inputs Timer Automatic current reduction |
| Digital Inputs | 4 optoisolated: DI0, DI1, DI2, DI3 freely usable Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible |
| Digital Outputs | 2 optoisolated: FAULT Operating up to 30V 50mA Each one NPN or PNP compatible |
| Analog Inputs | 2 converted to 11bit: AI0, AI1 Operating from -10V up to 10V Also usable as digital inputs |
| Analog Outputs | 1 converted to 10bit: AO0 Operating from 0V up to 10V Current up to 10mA |
| Protections, Alarms and Diagnostics | Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply Univocal indication for each anomaly |

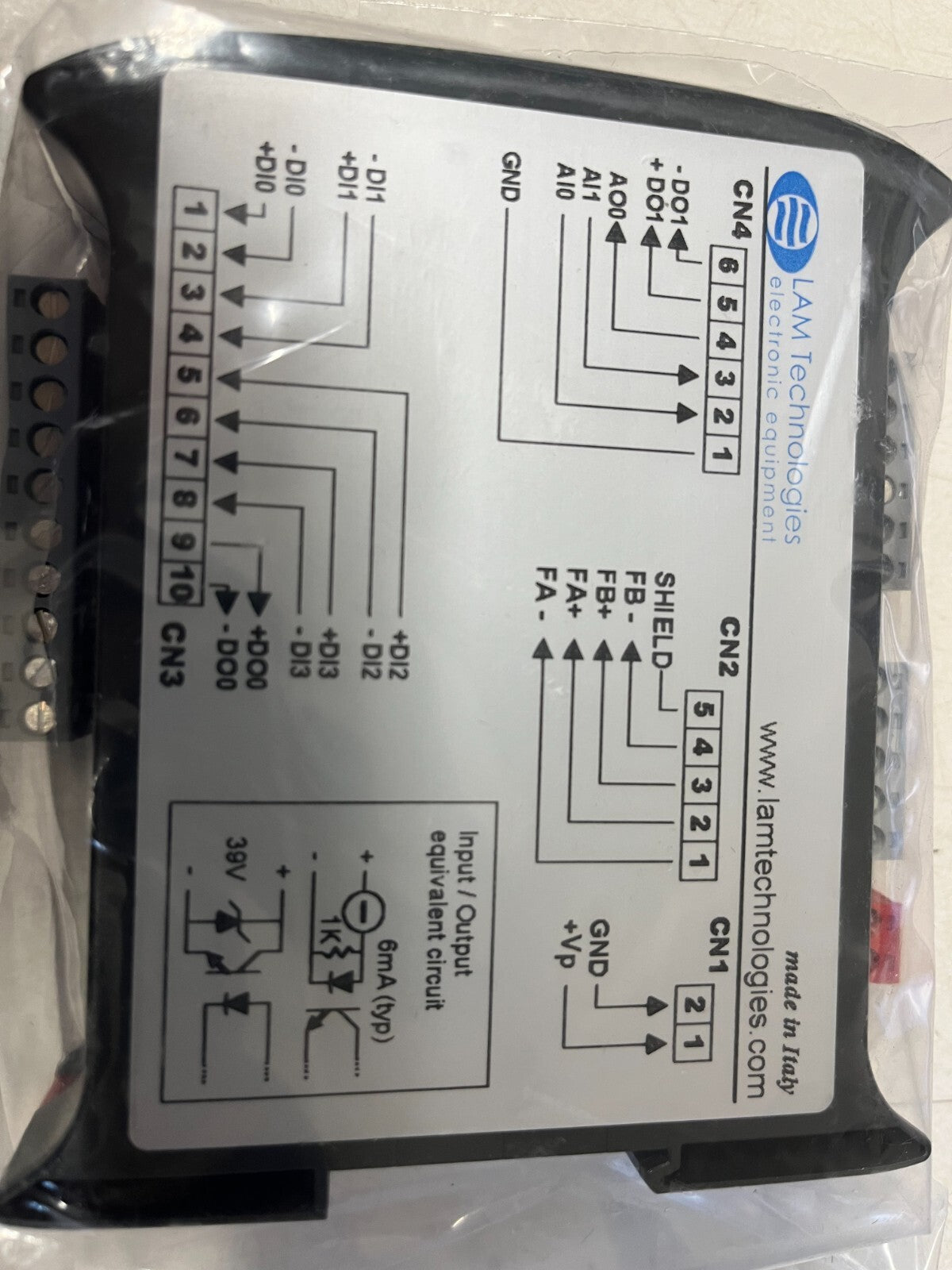

| Connections | By functional removable terminal block. Section of cable up to AWG14 |
