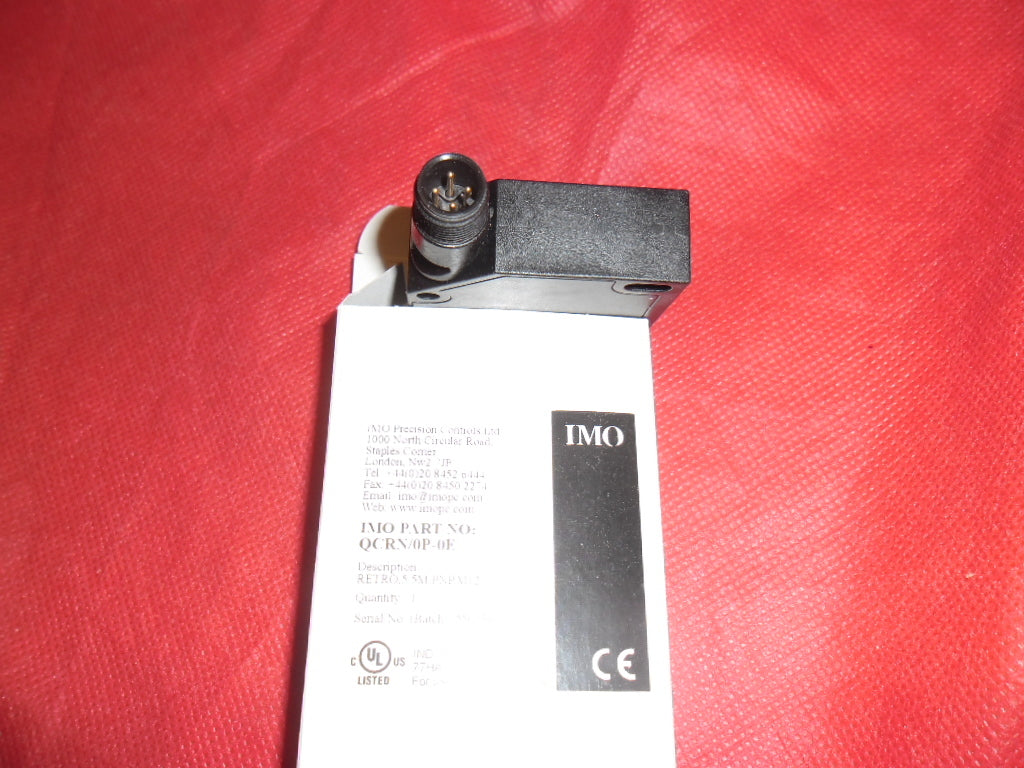

Photoelectric Switches QCRN/0P-0E
Sensing range up to 5.5m
Single lens optic for high accuracy
Polarisation filter for detection of object with reflective surface
Complementary NO and NC outputs
Sensitivity adjustment (2 turns) and LED display
Connector position rotatable within 270 degree
www.imopc.com
Red light 660 mm
Options & Ordering Codes
R
Visible red LED
emission R
QC N
Polarised Retro Reflective N
O
Complimentary NO and NC outputs O
P
P PNP logic output
O
O Plastic housing
E
E M12 axial plug exit
/ -
NPN option subject to MOQ
Specification
Optical
Sensing range 0 to 5.5m
Maximum sensing distance 6m
Sensitivity adjustment 2 turn potentiometer
Reflector type RL110 (not included)
Light emission Red 660nm, pulsed
Light spot size at 500 mm Ø15mm
Ambient light <10
Electrical
Operating voltage UB
10 - 30VDC
Power consumption (no load) < 30mA at 24VDC
Maximum residual ripple on UB
10%
Reverse polarity protection Yes
Shot circuit protection Yes
Output current 200 mA
Voltage drop at output <2.4V
Switching frequency (at ppp 1:1) 1 kHz
Output signal indiactor LED Yellow
Dirty optics indicator LED Red
Power indicator LED Green
Protection class
Mechanical data (typical)
Housing material ABS, shock-resistant
Protection degree IP67
Ambient temperature range -20 to +45o
C
Storage temperature -20 to +80o
C
Maximum permitted cable length 100m
Connection type M12 plug
Weight Approximately 40g
