Description

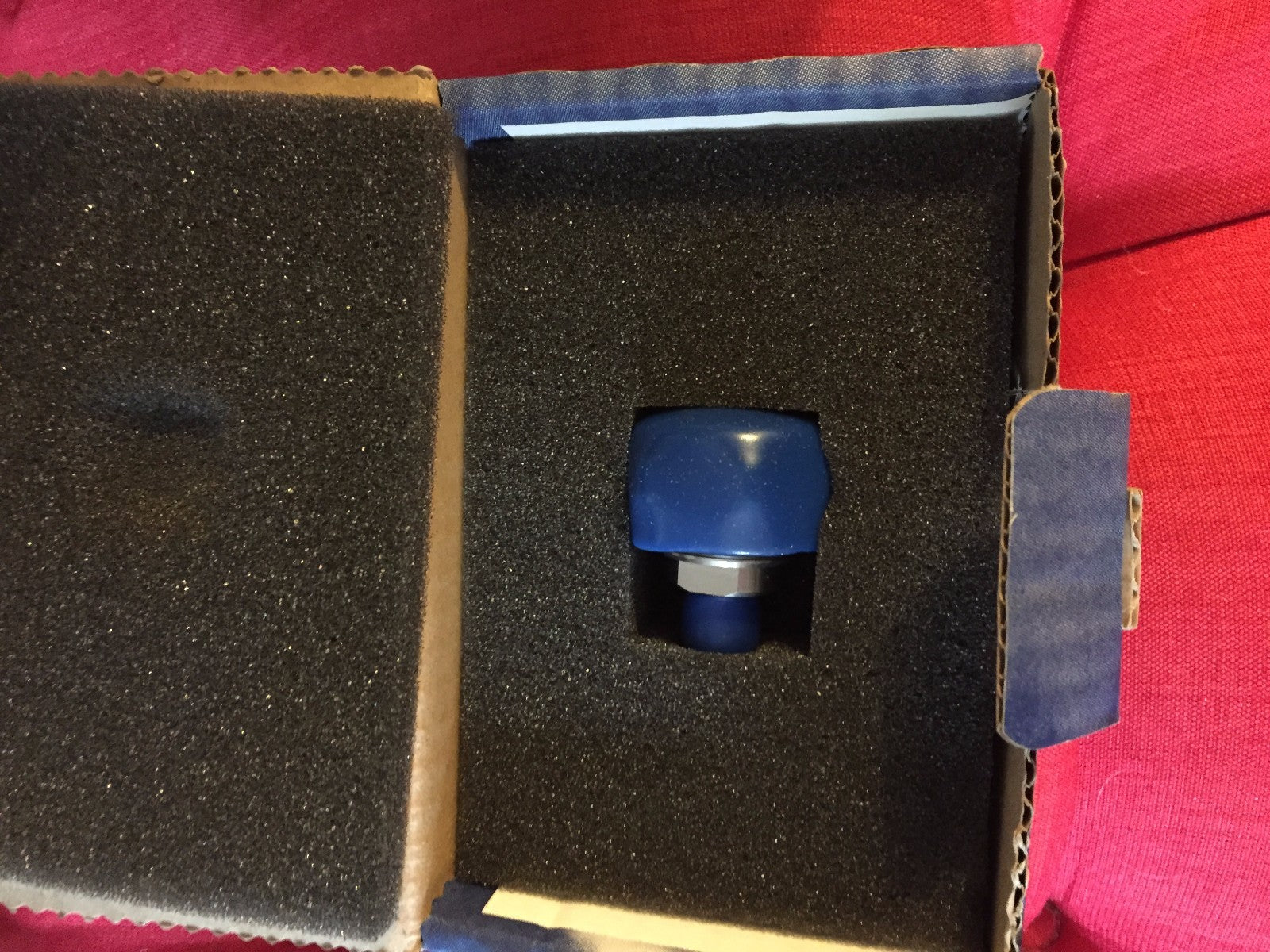

Adaptor plug/jack
7/16 plug (male) / TNC jack (female)
Intermod. performance better -165 dBc
For Test & Measurement applications
Interface standards
Series 7/16 - IEC 61169-4_CECC 22190_DIN 47223_VG 95250
Series TNC - IEC 60169-17_MIL-STD-348A/313_CECC 22200
Technical Data
Electrical Data
Impedance 50 Ω
Interface frequency max. 7.5 GHz
PIM, 3rd order intermodulation
distortion (IMD) max. Static -165 dBc at 2x 43 dBm / 20 W carrier
Mechanical Data
Number of matings 500
Weight 0.0909 kg
Environmental Data
Operating Temperature -65 °C to 165 °C
2002/95/EC (RoHS) compliant
Material Data
Piece Parts Material Surface Plating
Interface - 7/16 plug (male)
Centre contact Copper Beryllium Alloy SUCOPRO Plating
Outer contact Brass SUCOPLATE (R) Plating
Body Brass SUCOPLATE (R) Plating
Insulator PFA / PTFE
Coupling nut Brass SUCOPLATE (R) Plating
Interface - TNC jack (female)
Centre contact Copper Beryllium Alloy SUCOPRO Plating
Outer contact Brass SUCOPLATE (R) Plating
Body Brass SUCOPLATE (R) Plating
Insulator PFA / PTFE
