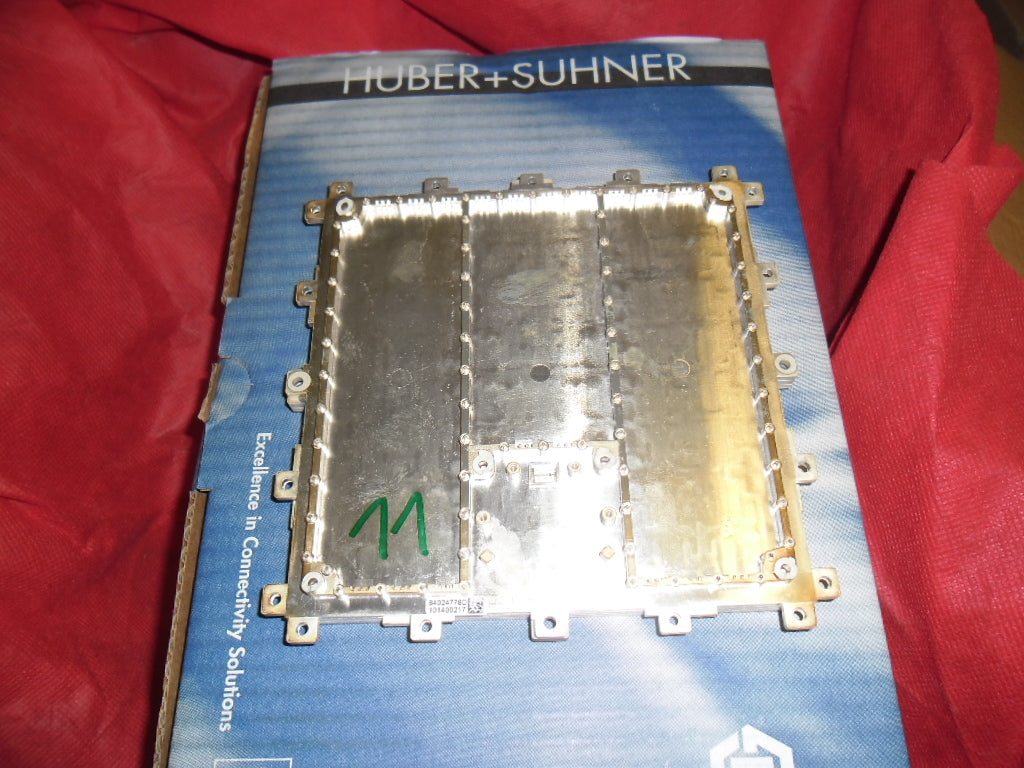

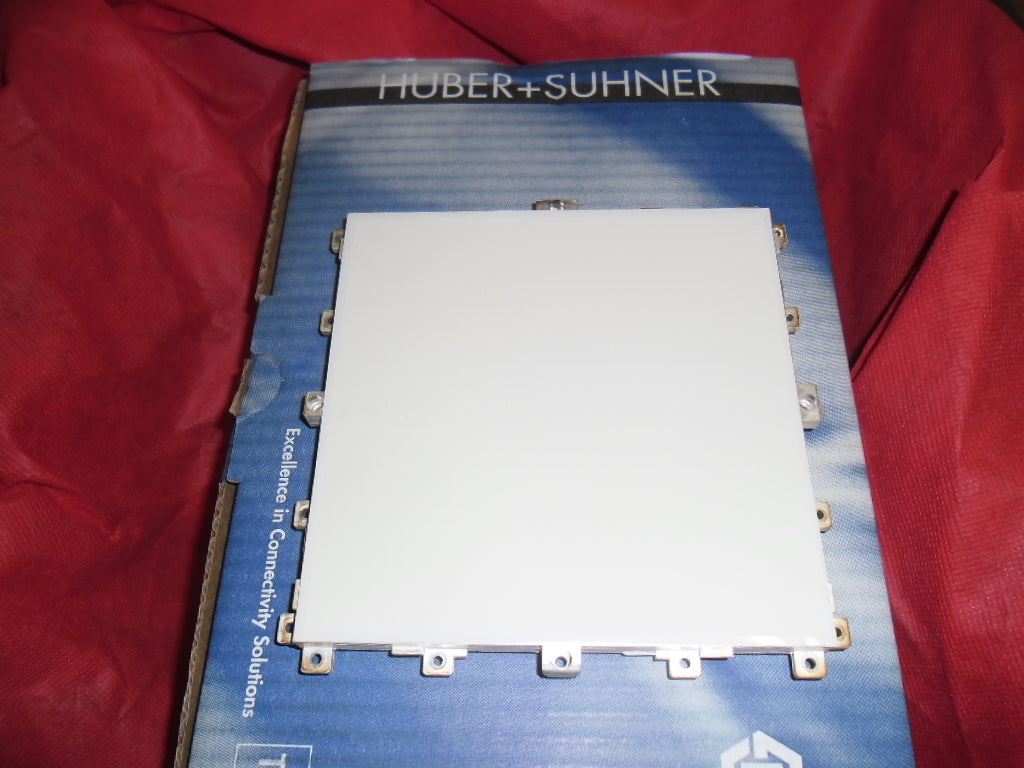

HUBER SUHNER 1360.99.0001 V BAND ANTENNA 57-66GHZ 38DBI 50 OHM NEW
Technical Data
Electrical Data
Band 1
Frequency (MHz) 57000 - 66000
VSWR 1.9
Impedance (Ohm) 50
Gain (dBi) 38
3dB beamwidth (h) (°) 1.8
3dB beamwidth (v) (°) 1.8
Front to back ratio (dB) 48
Co/Crosspolar ratio (dB) 21
Sidelobes (h) ETSI EN 302 217-4-2 V1.5.1
CLASS 2
Sidelobes (v) ETSI EN 302 217-4-2 V1.5.1
CLASS 2
Ports
Port 1
Connector WR15 (application specific
waveguide flange)
Polarization linear
Sidelobe suppression levels valid for 5° and 45° rotated installation.
Mechanical Data
Dimensions (mm) 135 x 130 x 9.5 (Heigth x Width x Depth)
Weight (kg) 0.15
Environmental Data
Environmental conditions indoor/outdoor
Operation temperature (°C) -45 to 85
Operating conditions ETSI EN 300 019-2-4 V2.2.2 (2003-04) T4.1E
Storage temperature (°C) -45 to 85
Storage conditions ETSI EN 300 019-2-4 V2.2.2 (2003-04) T4.1E
Flammability rating UL 94-V0
RoHS 2011/65/EC compliant
Lead-free soldered yes
REACH 2006/1907/EC compliant
Operating and storage conditions are valid if the antenna is properly enclosed.
