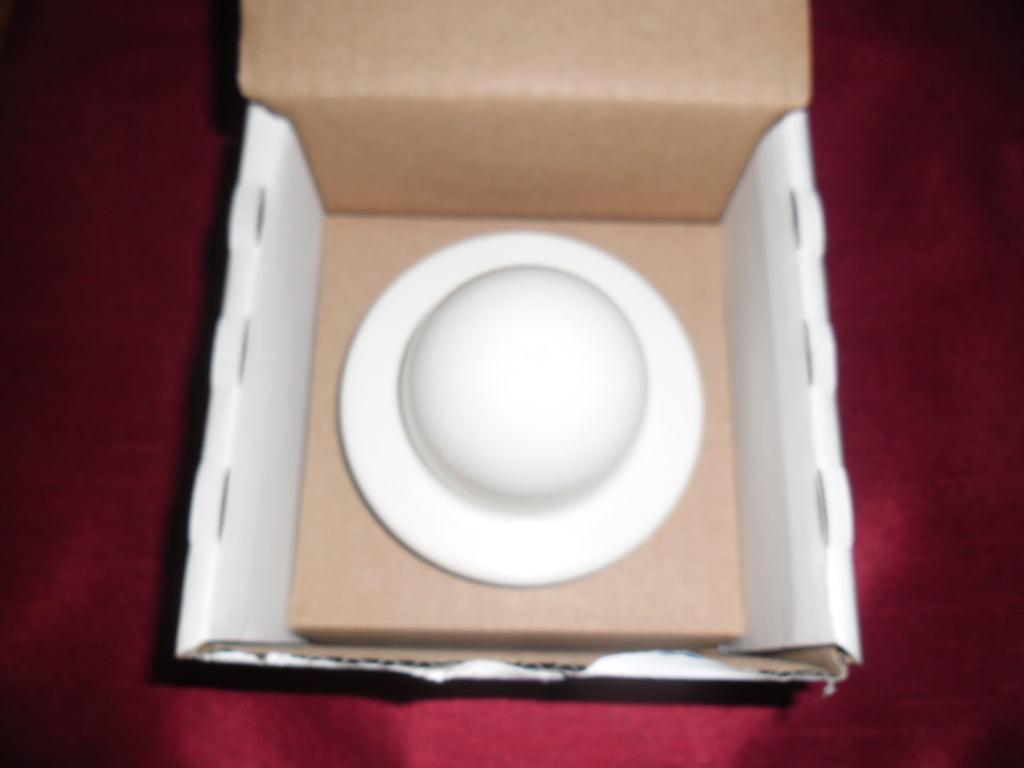

huber suhner 1324.17.0071 Sencity OMNI-S 2.4 GHz Antenna 802.11 a/b/g omni directional
Target applications
| Environment | indoor | |
| Installation / Service / Frequency |
|
||||||||||
Electrical data
| Polarization | vertical | |
| Impedance | 50 Ω | |
| Composite Power max | Ambient Temperature 25 °C | 75 W |
| Detail values | |||
|---|---|---|---|
| Band 1 | 2400 ... 2500 MHz | ||
| VSWR 1 | < 1.50 | ||
| Gain 1 | 4 dBi | ||
Radiation Pattern
Select graph
Mechanical data
| Dimensions (Width x Height x Depth) | ||
| Grounding | No | |
Environmental data
| Weight | 0.30 kg | |
| Operating Temp. Range | -40 ... 80 °C | |
| Storage Temp. Range | -40 ... 80 °C | |
| Transport Temp. Range | -40 ... 80 °C | |
Configuration and Mounting Hardware

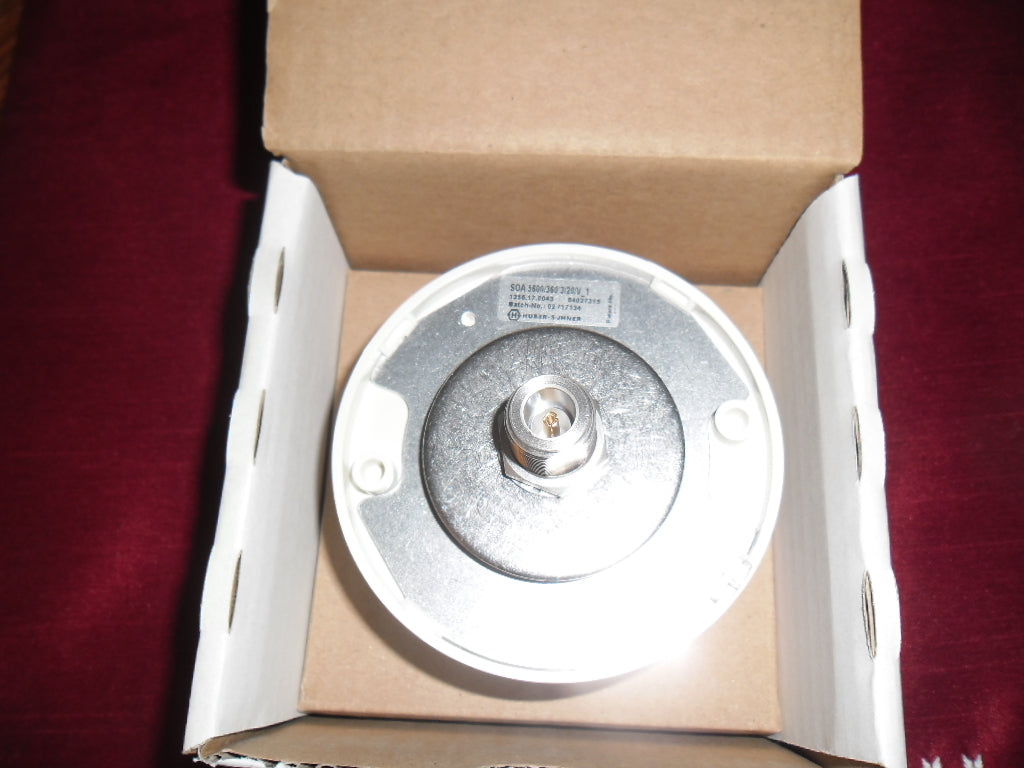

| Connector type | N, 50 jack (female) | |
| Connector Position | bottom | |
| Included mounting Material | Wall and ceiling mounting material | |
Material Data
| Recycling Label | No | |
| 2011/65/EC (RoHS) | compliant | |
| Piece part | Base material | Plating |
|---|---|---|
| Back housing | Aluminium | RAL 9010 (white) |
| Radome | PC (Polycarbonate) | RAL 9010 (white) |
