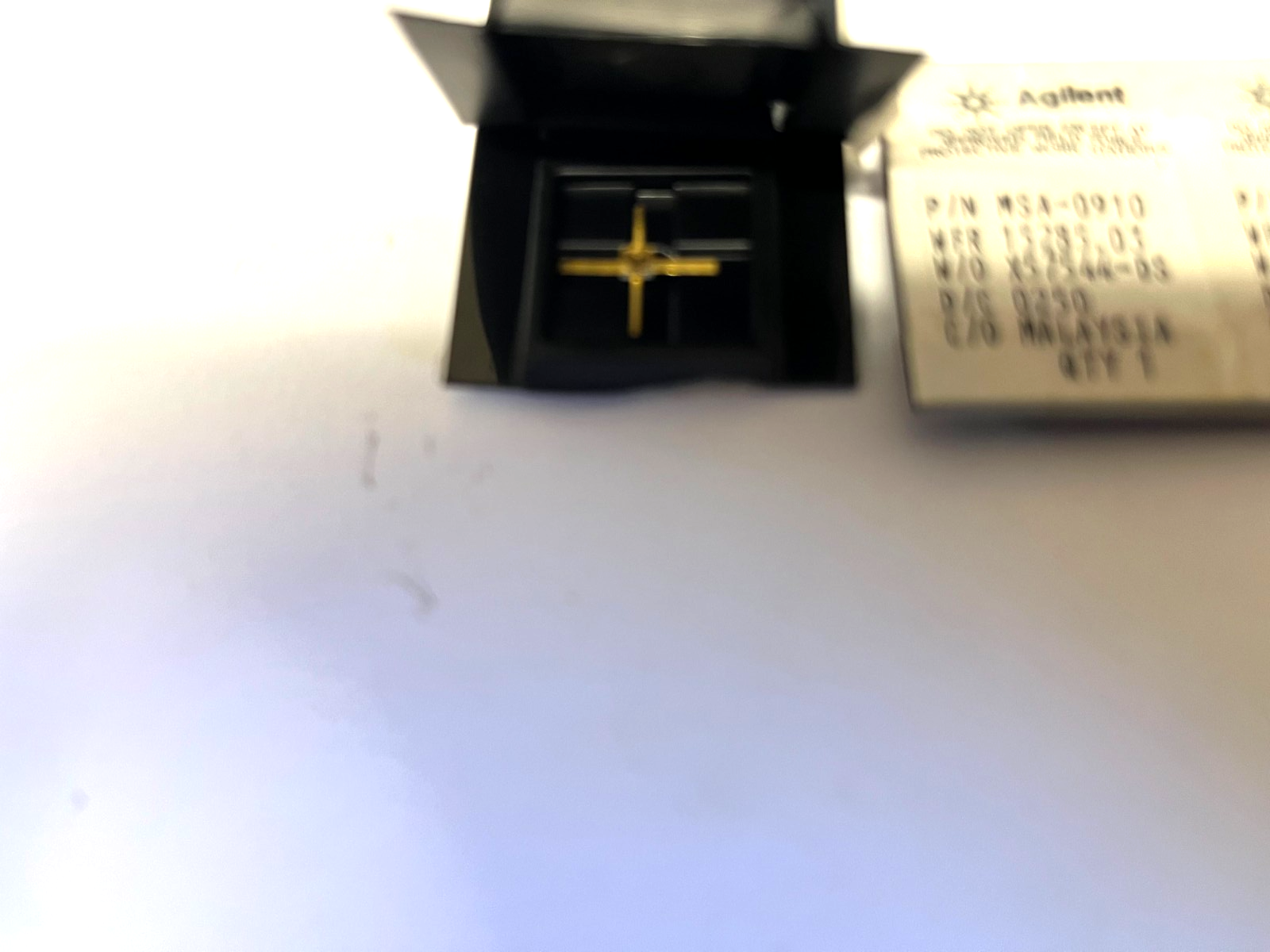

HP/AGILENT MSA0910 Cascadable Silicon Bipolar MMIC Amplifier

Description
The MSA-0910 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a hermetic, high reliability package. This MMIC is designed for very wide bandwidth industrial and military applications that require flat gain and low VSWR.

Features
• Broadband, Minimum Ripple Cascadable 50 Ω Gain Block
• 8.0 ± 0.2 dB Typical Gain Flatness from 0.1 to 4.0 GHz
• 3 dB Bandwidth: 0.1 to 6.0 GHz
• Low VSWR: ≤ 1.5:1 from 0.1 to 4.0␣ GHz
• 11.5 dBm Typical P1dB at 1.0␣ GHz
