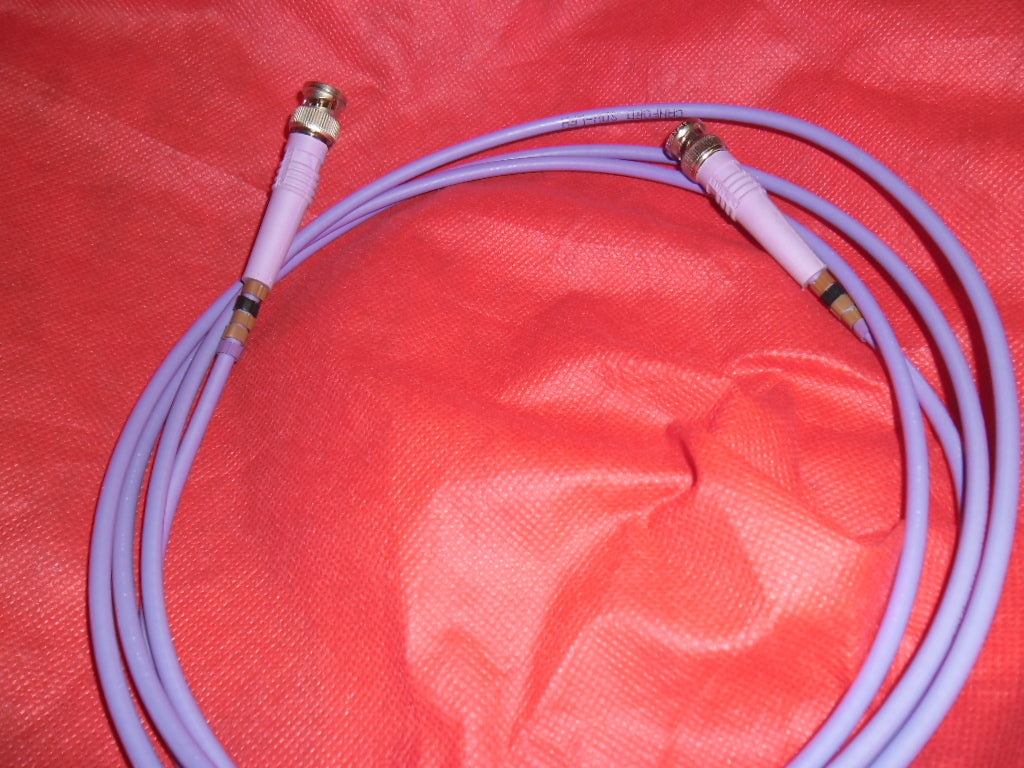

CANFORD SDV-LFH CABLE BNC-BNC 75 OHM PURPLE for serial digital video signals 2.5mtr
Technical Specification:
| Cable size group: | X |
| Inner conductor: | 0.6mm plain copper |
| Dielectric: | Foam polyolefin, 2.80mm O.D. |
| Screen 1: | Aluminium/polyester/aluminium tape longitudinally applied |
| Screen 2: | 0.122mm tinned copper braid, optical coverage 95% |
| Construction: | Coaxial cable |
| Jacket: | Low smoke zero halogen material, various colours |
| Overall diameter: | 4.6 ±0.3mm |
| Impedance: | 75 ±1% ohms |
| Capacitance: | 56pF/m nominal |
| Return loss: | 26dB nom. 50-300 MHz |
| 22dB nom. 300-3000 MHz | |
| 18dB nom. 3000–3500 MHz | |
| 15dB nom. 3500–5000 MHz |
| Attenuation: | MHz | 1 | 5 | 10 | 135 | 180 | 270 |
| dB/100m | 1.20 | 2.50 | 3.50 | 12.20 | 14.23 | 17.74 | |
| MHz | 360 | 720 | 1000 | 1500 | 3000 | 4500 | |
| dB/100m | 20.48 | 29.88 | 35.30 | 43.20 | 63.60 | 82.20 |
