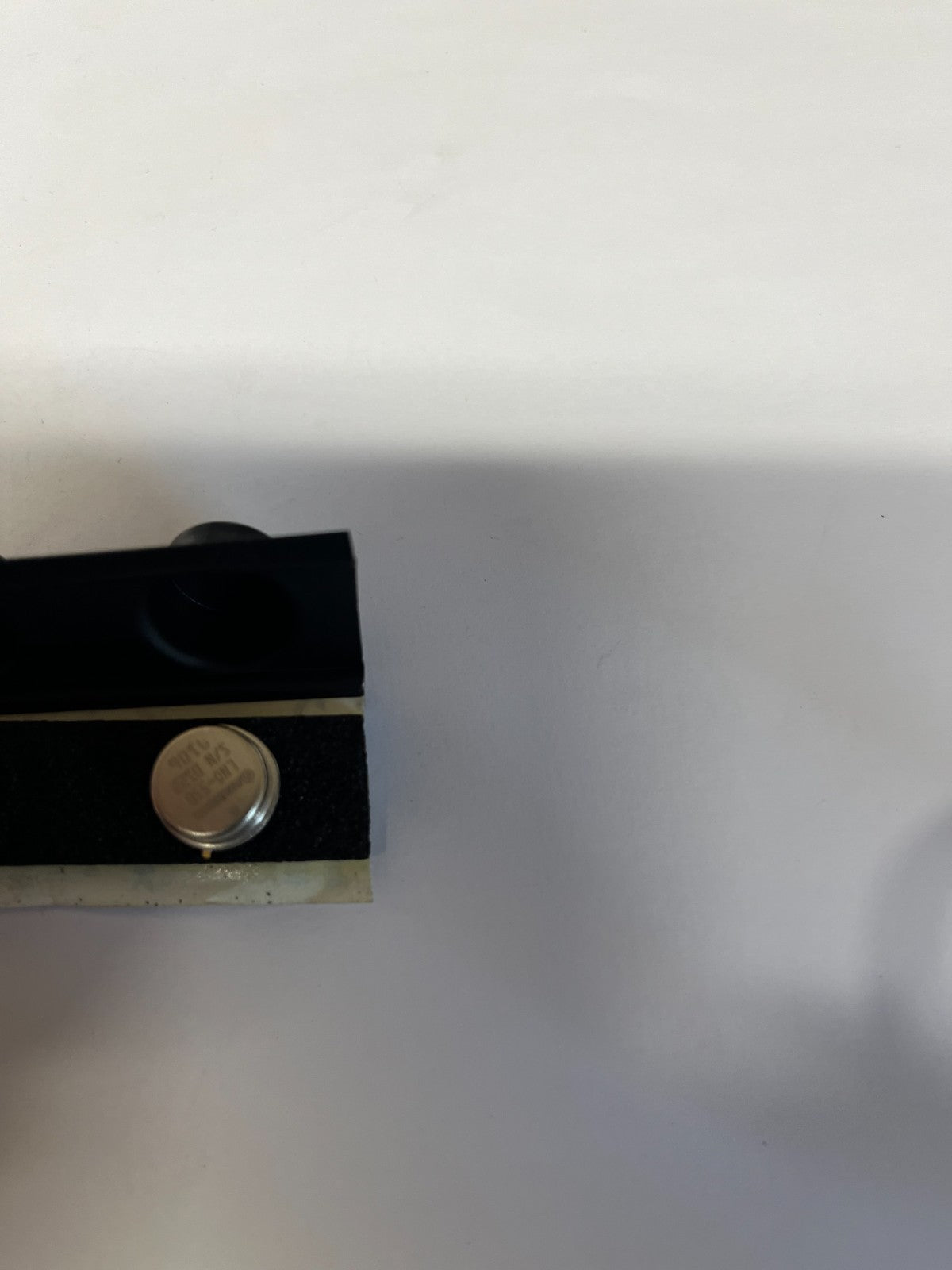

Avantek LNO550 Voltage Controlled Oscillator, 550MHz Min, 775MHz Max

£49.00
£49.00
£0.00
Sold out
Tax included.
Avantek LNO-550 Voltage Controlled Oscillator, 550MHz Min, 775MHz Max

  • Phase Noise
    -112 dBc/Hz
  • Output Power
    10 dBm
  • Oscillator Type
    VOLTAGE CONTROLLED OSCILLATOR
  • Power Variation
    2.5 dB
  • Mounting Feature
    THROUGH HOLE MOUNT
  • Offset Frequency
    50 kHz
  • Physical Dimension
    12.7mm x 4.318mm
  • Supply Current-Max
    50 mA
  • Supply Voltage-Nom
    12 V
  • Control Voltage-Max
    20 V
  • Control Voltage-Min
    1.5 V
  • Number of Terminals
    4
  • Modulation Sensitivity
    45 MHz/V
  • Operating Frequency-Max
    775 MHz
  • Operating Frequency-Min
    550 MHz
  • Operating Temperature-Max
    85 Cel
  • Operating Temperature-Min
    -54 Cel
